MDQ09 ABS Power Handle Lockout for Electrical Panel Handle Switch Lockout

FEATURES

●Lock hole diameter: 8.5 mm
Lock belt length: 300 mm

●Material: ABS plastic base with reinforced nylon belt.

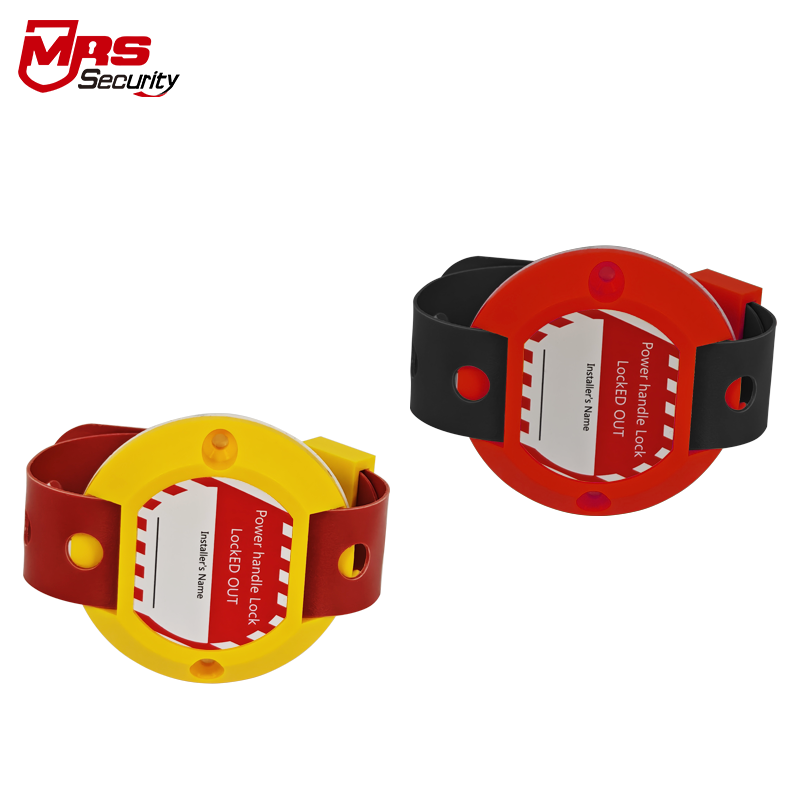

●Color: Red and yellow OR Red and black

●A base with a warning label
A 30 cm length 15-hole lock belt

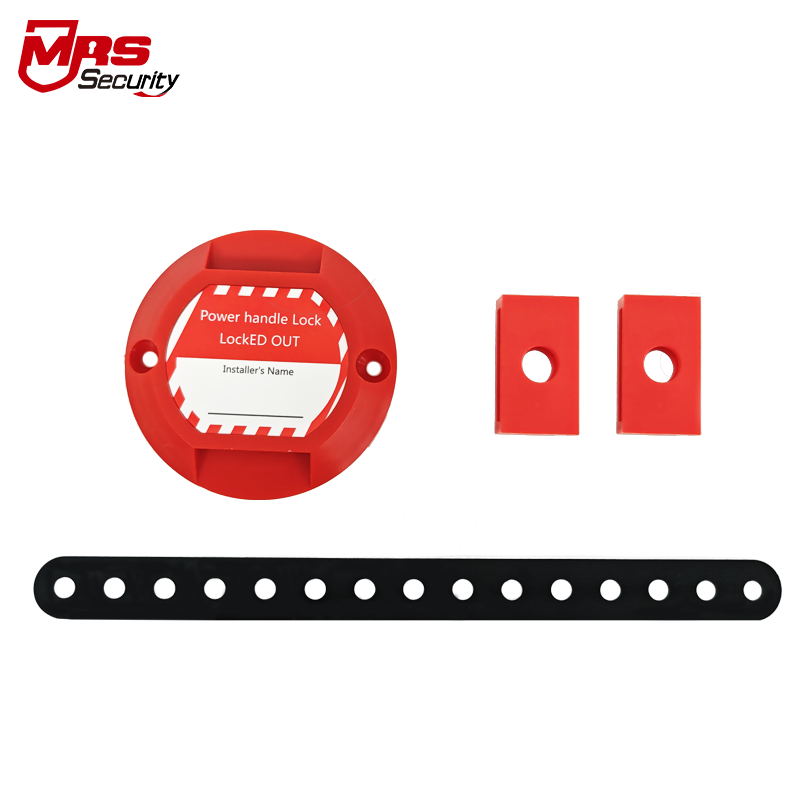

A 3M adhesive backing+2 lock clips+2 screws

●Screw-fixed or adhesive-fixed

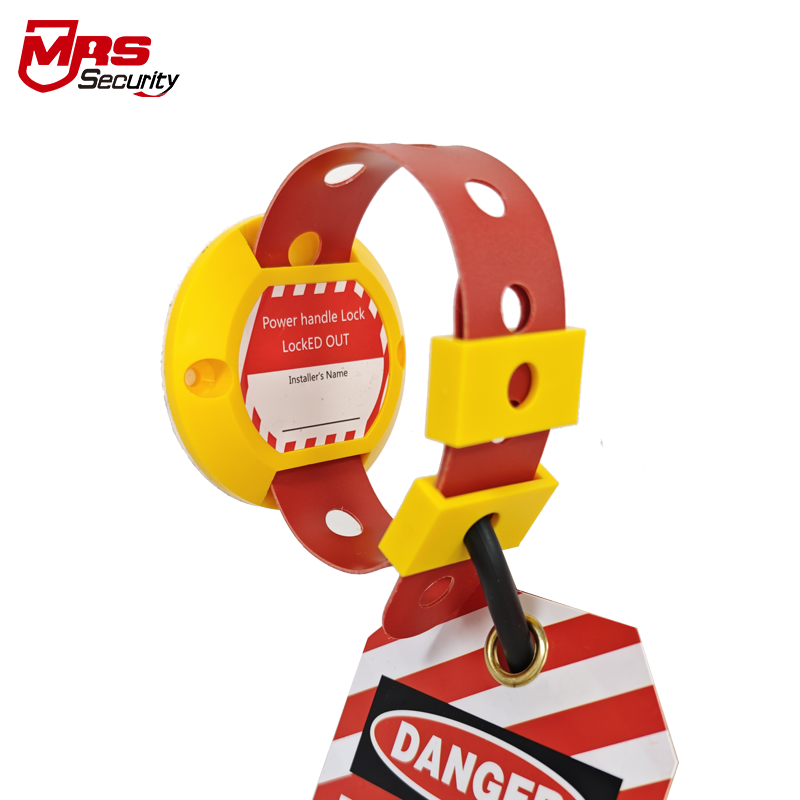

●It can hold a safety padlock (not included), with a max shackle diameter of 1/4 inch.

Get a Quote

Download

Product Details

Products Description

Specification

Product code	Color	Material	Size	Application	other
MDQ09-1	Yellow & Red	ABS	Lock body: 64 mm x 64 mm Lock belt: 300 mm x 25mm Lock hole dia:8 mm	Suitable for handle width 8 mm ≤ handle <16 mm	With two screws and a 3M adhesive backing

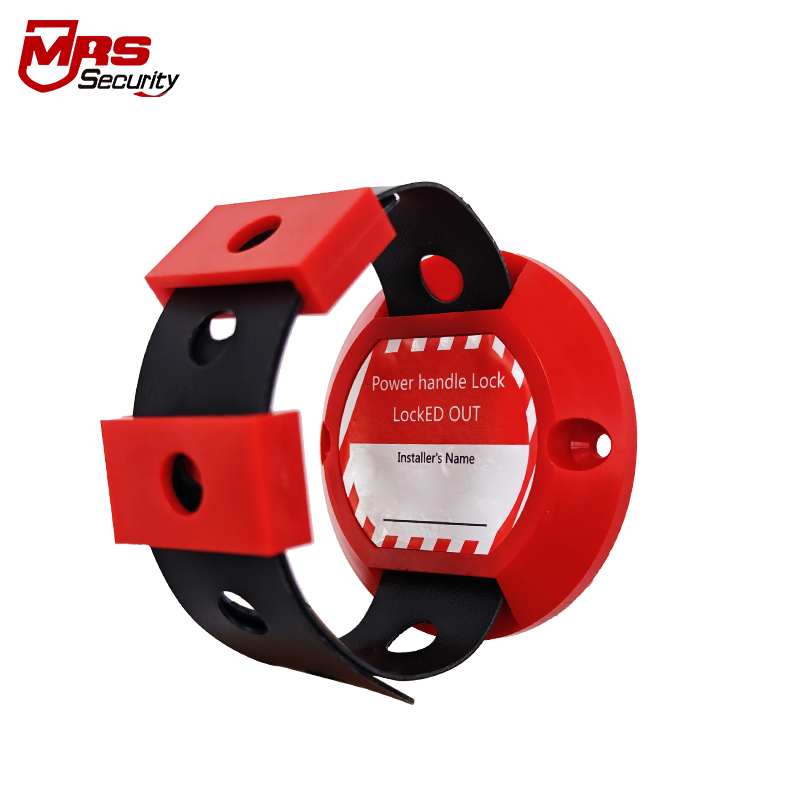

MDQ09-2	Black & Red	ABS		Suitable for handle width 8 mm ≤ handle <16 mm	With two screws and a 3M adhesive backing

Description

Electrical Panel Handle Safety Lockout Device is the perfect choice for protecting employees from dangers involved in lockout/tagout procedures.
Featuring a nylon base and a flexible stainless steel strip with 15 holes, the device prohibits the movement of handles or levers on electrical panels and accommodates one padlock with shackles up to 1/4 inches.

Features

●The ABS base and flexible nylon belt with 15 holes prevent the handle from moving once locked with a lockout padlock.
●Holds 1 safety padlock (not included) with up to 1/4" shackle diameter.

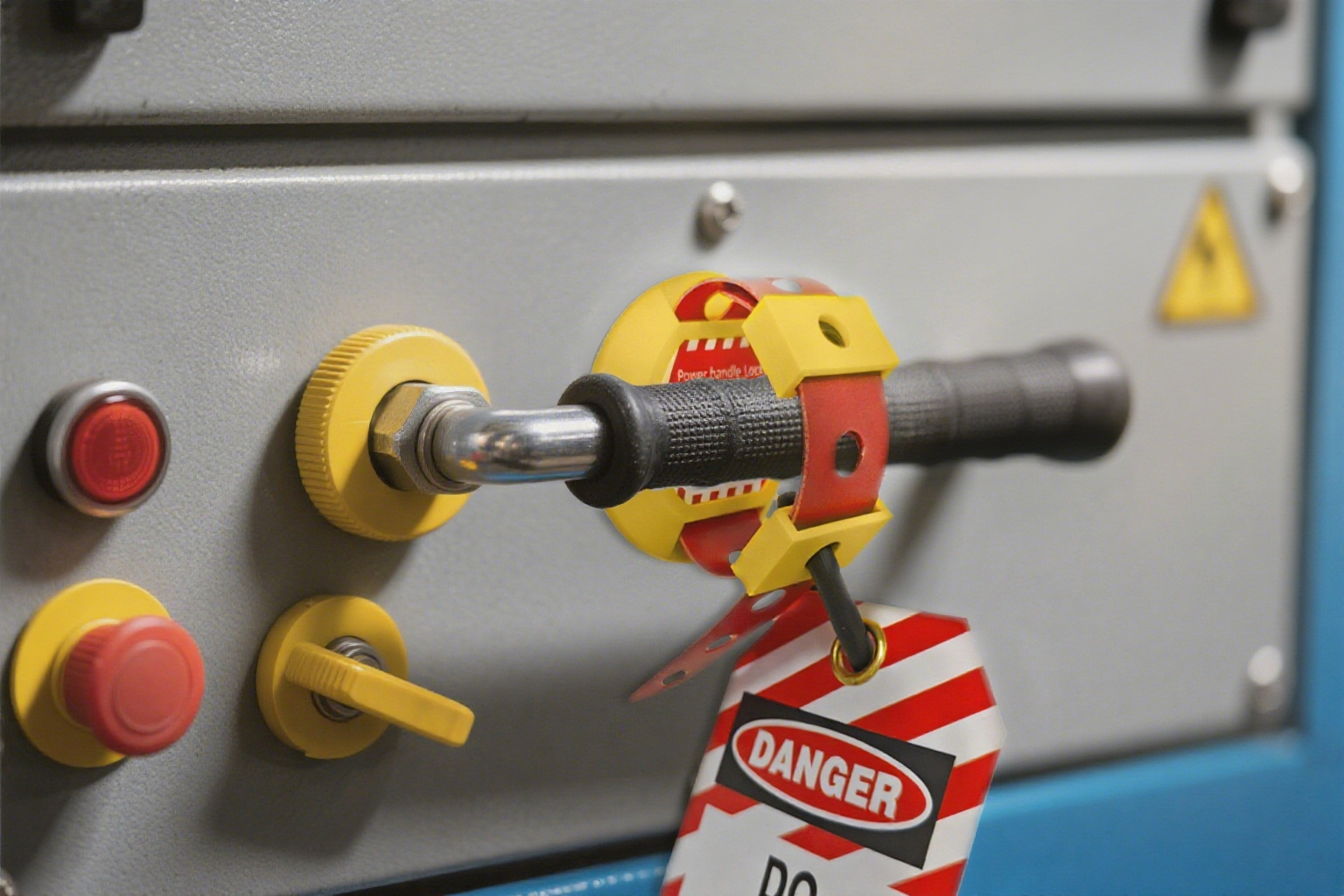

●Prohibits the movement of handles or levers on electrical panelsRecommended for all handles and levers that do not have a built-in lockout arrangement.
●It can be fixed to the distribution panel using strong adhesive or nylon screws .

1.Main Function: Suitable for industrial power isolation areas, effective isolation and marking of maintenance equipment, providing additional safety protection. Recommended for use with all handles and levers that do not have a built-in locking mechanism.

2.Structural Design: The lock consists of a 15 hole strap and 2 clips, the lock body is made of wear-resistant reinforced ABS material, insulating and temperature resistant, which is durable and not easy to deform.which can be fixed to the handle of the electrical surface to avoid electrical accidents during the maintenance of employees.

3.Rugged Construction: The lock body is made of wear resistant, insulating and temperature resistant reinforced ABS material, which is durable and not easy to deform.

4.Unique Appearance: Eye catching red and yellow (or Black and red) exterior color to alert operators and maintenance personnel that the unit is in lockout to avoid accidental activation.

5.Easy Installation: The lock body comes with an industrial adhesive that can be fixed directly to the position to be locked, also has a hole design that allows screws to be used to securely fix the lock in the permitted area.

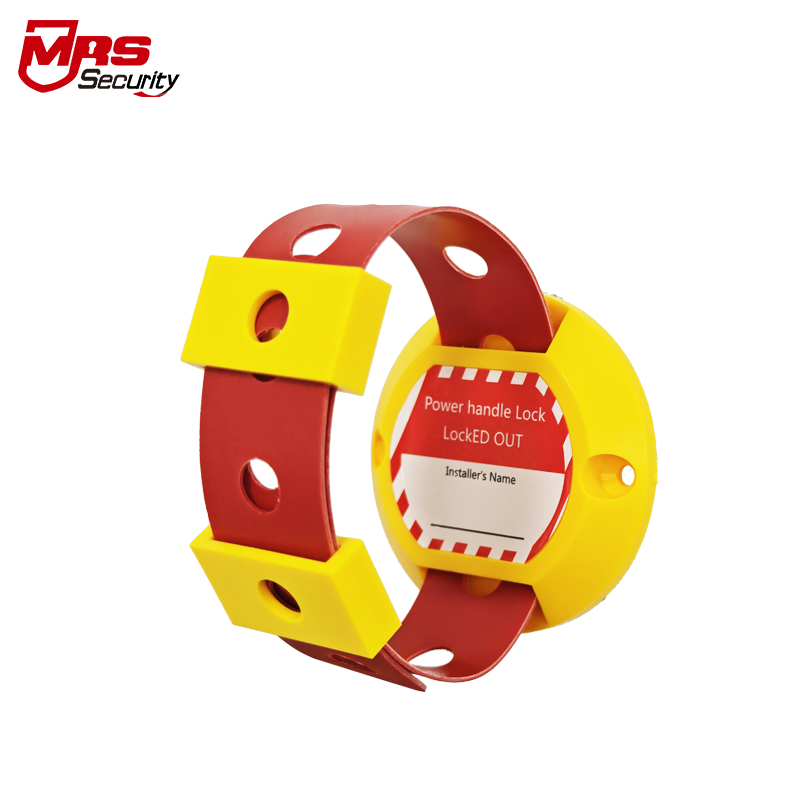

Yellow & Red
